ROTARY PADDLE TYPE LEVEL SENSOR

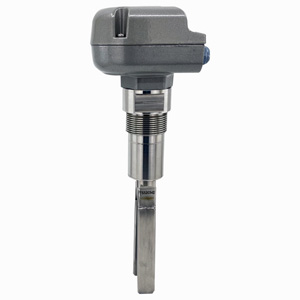

Vibrating Fork Silo Level Sensor
Stock Code: 6 S1 V1 DA2
The Vibrating Fork Type Silo Level Sensor is a cost-effective and high-performance product designed to accurately and reliably monitor material levels in silos and tanks. This sensor operates on the vibration principle, sensitively detecting material contact and instantly reporting the fill level. Conventional motorized and capacitive tank level sensors are not very efficient with low-flow and sticky powder products. As an ideal solution to these challenges, our fork-type silo level sensors are compatible with various materials such as dust, granules, and liquids, delivering high performance in industrial applications. With its easy installation and maintenance benefits, it enhances operational efficiency and provides a reliable level control solution for businesses.
Piece :
1
GET A QUOTE
SHARE:
DETAIL INFORMATION
GENERAL INFORMATION
Vibrating Level Sensor - Compact Model
Ideal for powdered and fine granular solid materials. Minimum density: 8 g/l

This device performs direct measurement at the installed location and determines the level with millimeter precision. Its tuning fork design ensures durability and resistance to adhesion. Maximum grain size: 10 mm

It is a universal limit switch for powdered and fine granular bulk materials. It reliably detects both minimum and maximum levels. The vibrating fork design is ideal for use with adhesive and abrasive substances as well as bulk materials with very low density.
ADVANTAGES AND USAGE AREAS
  • Its robust design ensures low service and maintenance costs.
  • Easy commissioning without the need for materials minimizes labor and costs.
  • Reliable operation with a switching point independent of the product.
    • Measuring Range - Distance :
    Process Temperature :
    -50 ... 250 °C
    Process Pressure :
    -1 ... 25 bar
    Version :
    Detection of solids
    Materials, Wetted Parts :
    316L
    Threaded Connection :
    ≥ G1½, ≥ 1½ NPT
    Flange Connection :
    ≥ DN50, ≥ 2"
    Hygenic Fittings :
    Clamp ≥ 2", DN50 - DIN32676, ISO2852
    Seal Material :
    Housing Material :
    Plastic / Aluminum / Stainless Steel
    Protection Rating :
    IP65
    Output :
    Relay (DPDT)
    Ambient Temperature :
    -40 ... 80 °C
    Click to Download Technical Drawing
